38мм Промышленный коммутатор Ethernet промышленный 4-портовый сетевой коммутатор 10/100 Мбит/с, питание 5V/12V/18V, температура от -40 до 75℃ включено.

38мм Промышленный коммутатор Ethernet промышленный 4-портовый сетевой 10/100 Мбит/с питание 5V/12V/18V температура от -40 до 75℃ включено.

Product Description

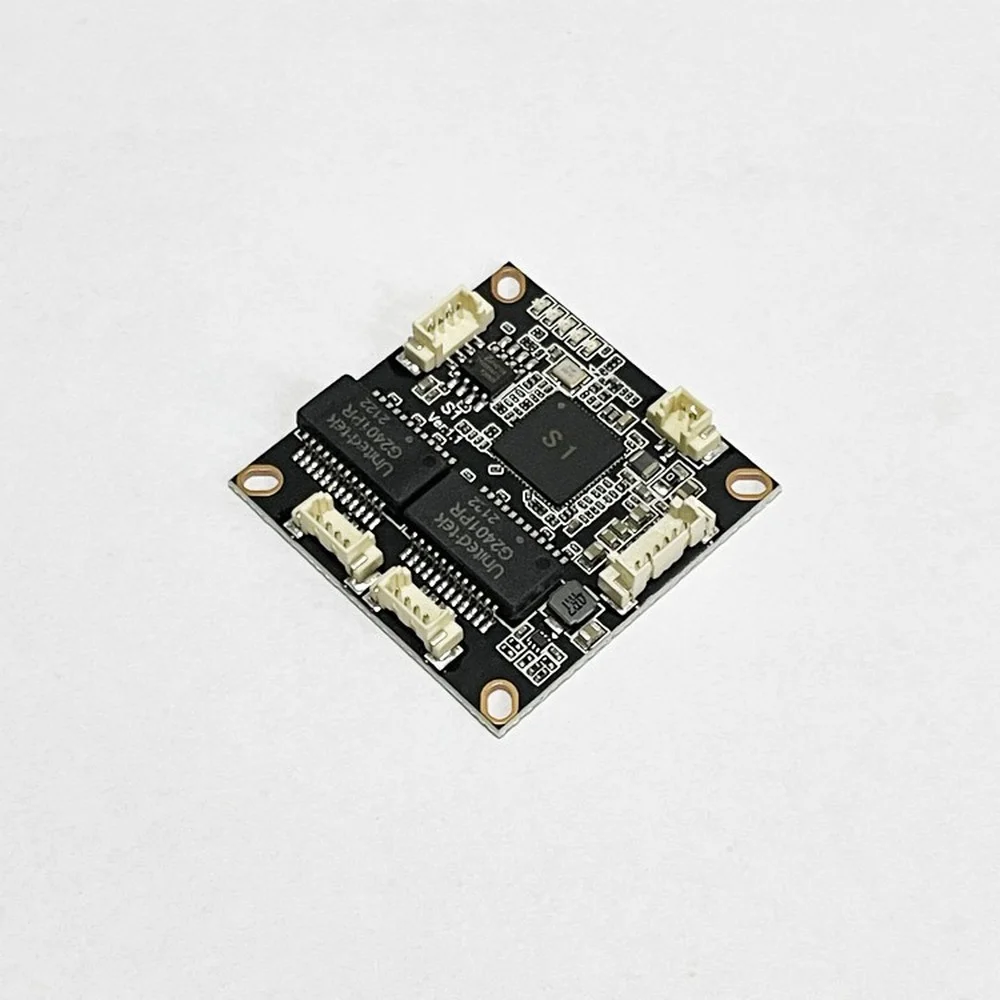

4 100M  is a four port mini unmanaged Ethernet switch core module that provides four 10/100M adaptive Ethernet ports. The 38X38 mini design size is easy to install and adapts to different embedded system integrations.

 Lightning surge protection,electrostatic support contact 8KV, surge differential mode2KV, common mode 4KV. Temperature: -40℃~75℃

1. Comply with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab standards;

2. Full-duplex adopts IEEE 802.3x standard, half-duplex adopts Backpressure standard;

3. 4 10/100M adaptive pin network ports, support port auto flip(Auto MDI/MDIX)

4. Each port supports auto-negotiation and automatically adjusts the transmission mode and transmission rate;

5. Support MAC address self-learning;

6. Support full speed forwarding communication without blocking;

7. Mini size design, 38X38MM (length X width);

8. Dynamic LED indicator to provide simple working status prompts and troubleshooting;

9. Power supply supports 5-12V input;

Protocol

Standard:IEEE802.3,IEEE802.3u,IEEE802.3x

Flow control:IEEE802.3x.Back Pressure

Interface

100M network port: 10Base-T/100Base-TX adaptive

Transmission distance

Twisted pair: 100M (standard CAT5/CAT5e cable)

Indicator light

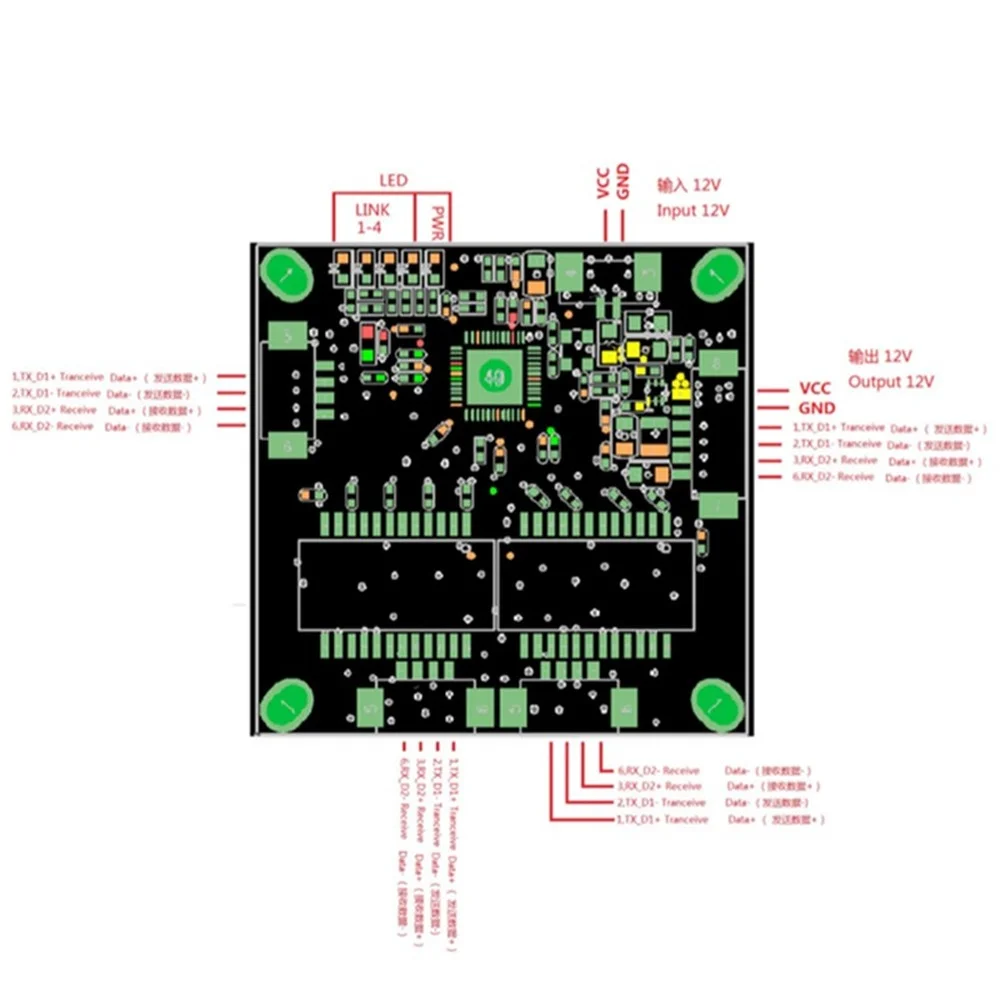

Interface indicator:1-4(LINK/ACT)

Power Indicator: PWR

Exchange attribute

100 Mbps forwarding speed:148810pps

Transmission method: store and forward

System exchange broadband: 1.0G

Cache size: 1.0G

MAC address: 1K

Power supply

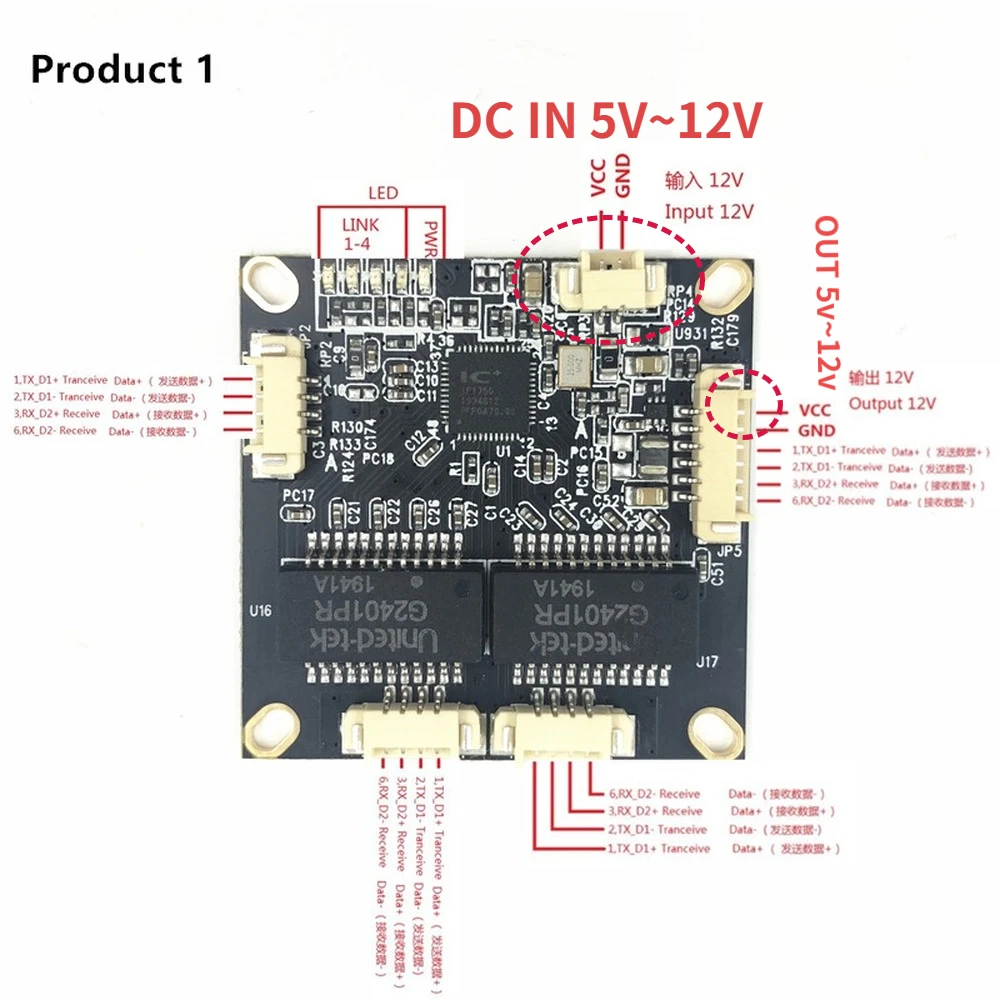

Input voltage: 12VDC (9~12VDC)

Input method: Pin type 2P terminal block, spacing 1.25MM

Consumption

No load: 0.9W@12VDC

Load: 2W@VDC

Working environment

Working temperature: -5~+55°C

Storage temperature: -40~+85°C

Humidity: 10%~95% (no condensation)

Product structure

Weight: 12g

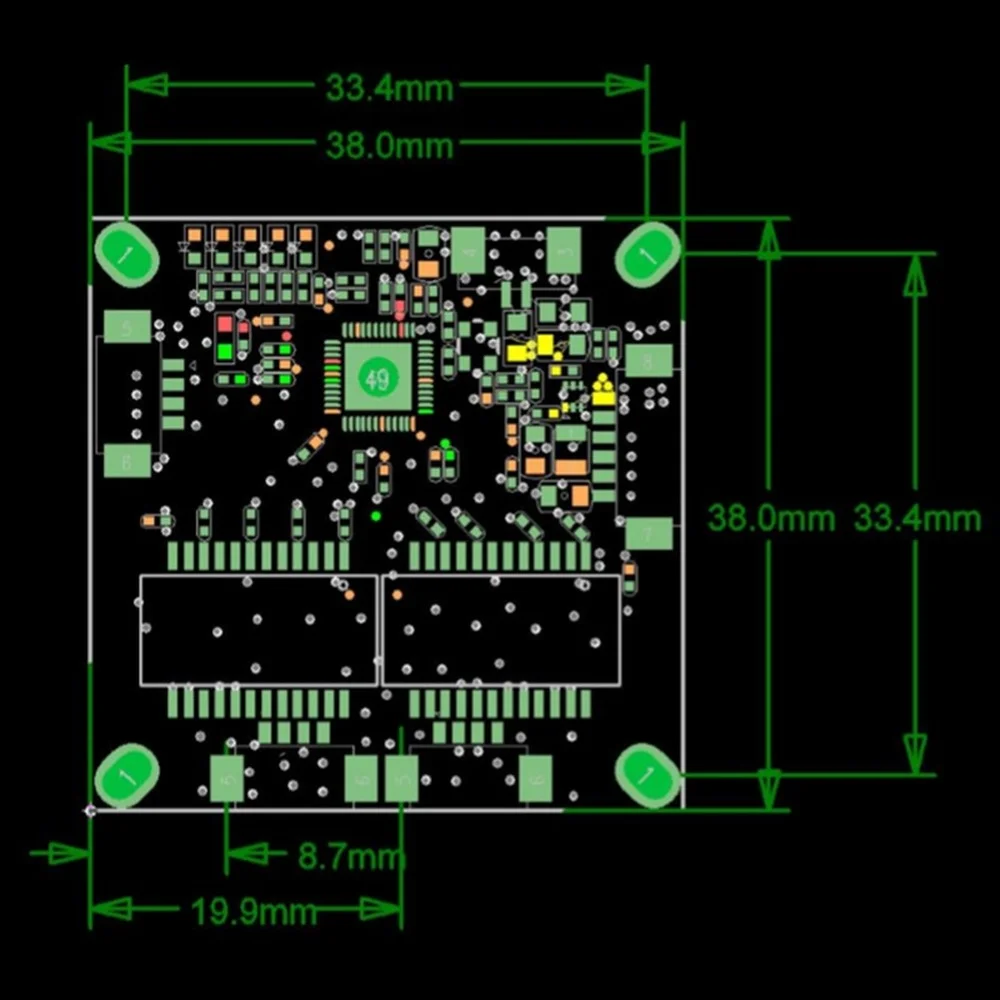

Size: 38 mm × 38 mm × 7 mm (length X width X height)

Packing list

1* 4 port Switch core module

Warranty

2 years

This product is an embedded integrated module for conference room systems, education systems, security systems, industrial computers, robots, gateways, and so on.

 TOP

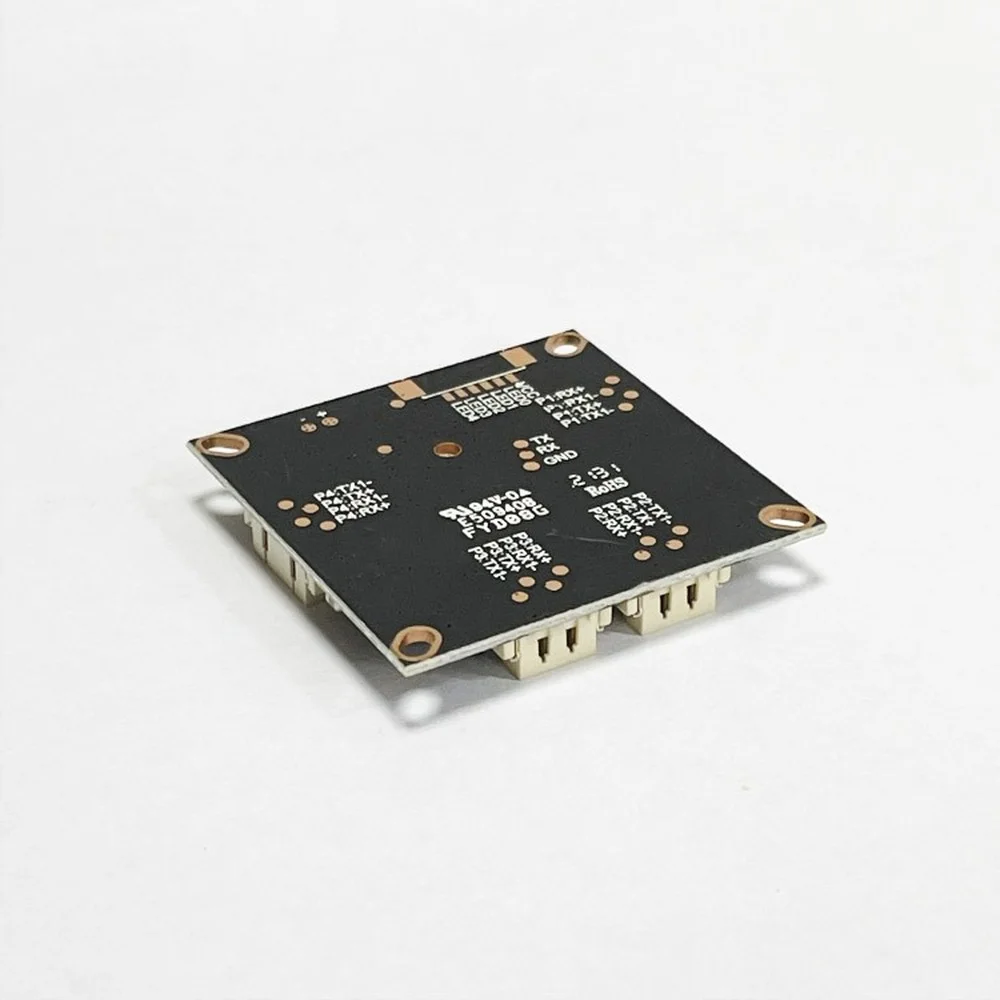

Bottom

Product Definition
