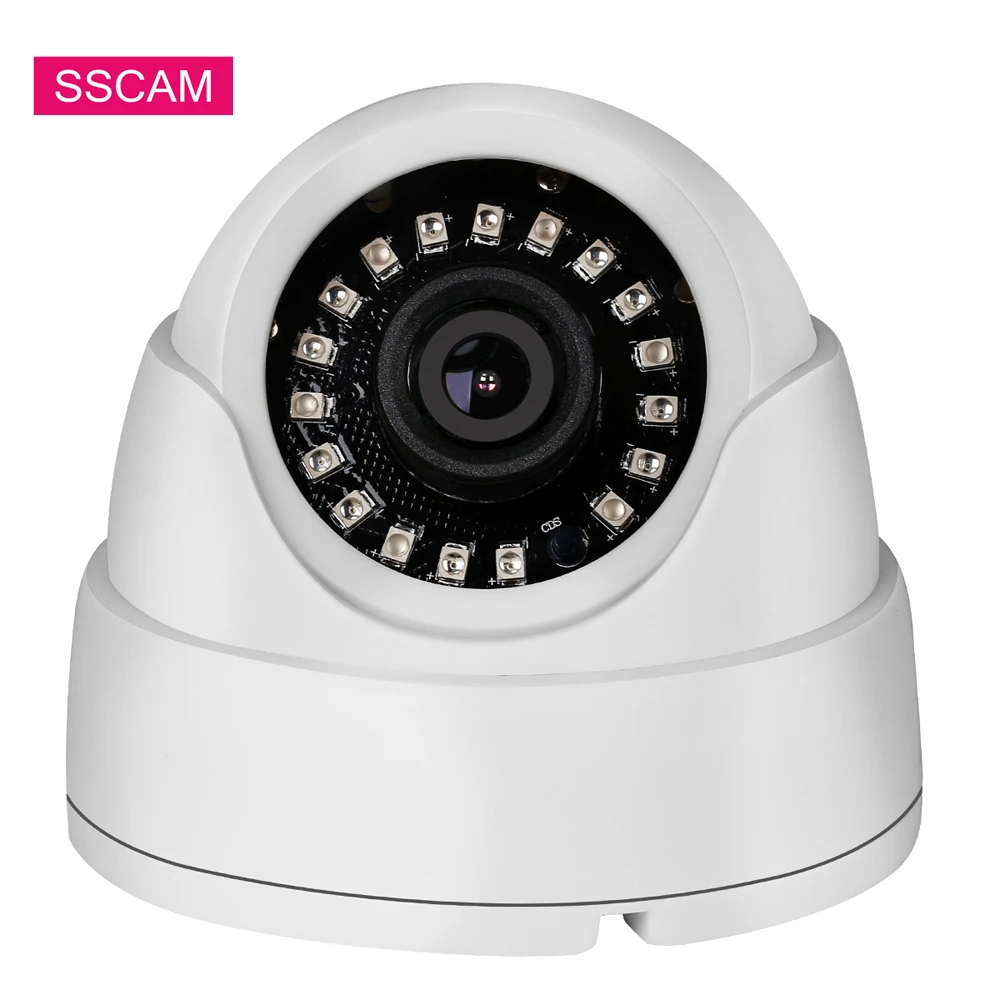

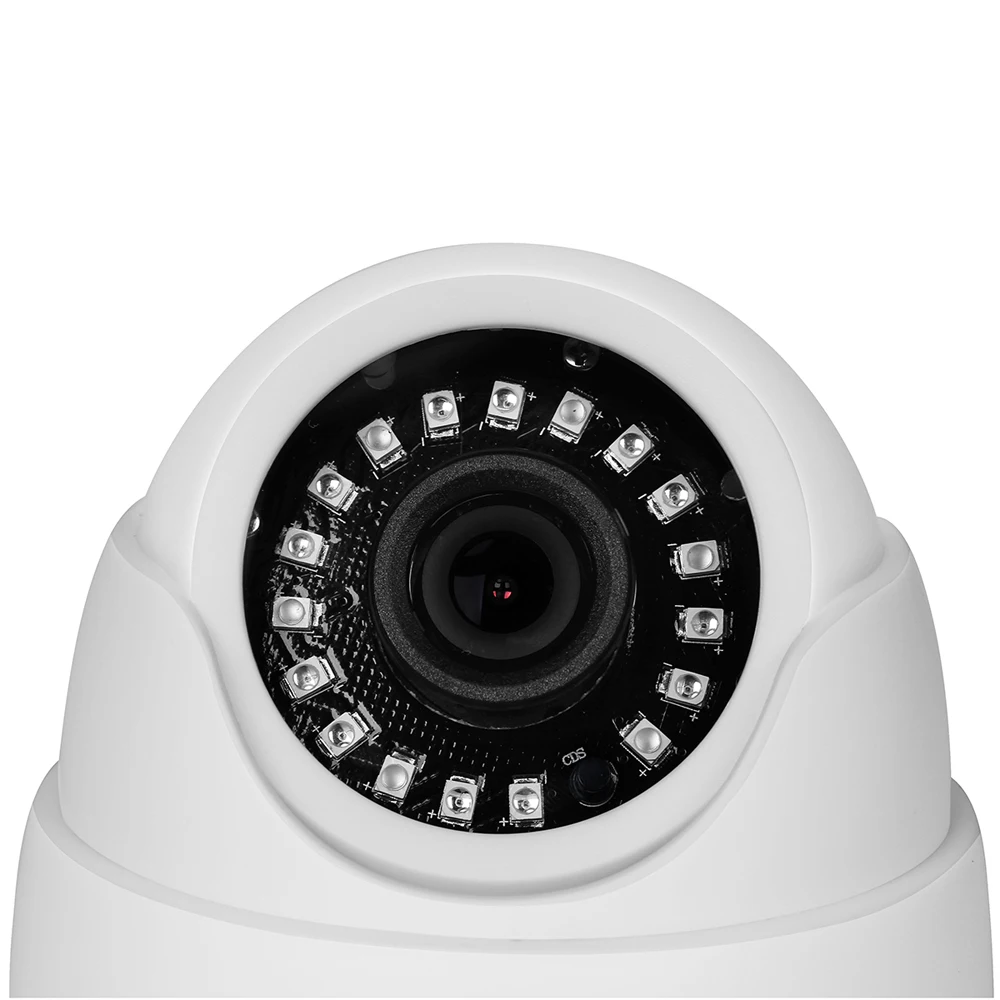

4Pieces/Lot Dome AHD Security CCTV Surveillance Camera 2MP 4MP Indoor Mini CMOS 20M Infrared IR Analog High Definition | Безопасность и



Features:



3.6mm fixed Lens;

2MP 4MP AHD Camera;

18 Pieces IR Leds IR Distance 20M;

Day and night vision auto switching;



Package: 4Pieces AHD Security Camera Indoor





Specification:



Item Type  AHD CCTV Camera Resolution 2MP 4MP Sensor Nextchip2441+SONY 323 Nextchip2475+OV4689 Pixel 1920*1080 2560*1520 4 IN 1 Mode AHD/TVI/CVI/CVBS AHD/TVI/CVI/CVBS D/N Mode IR cut Auto switching Illumination 0.01LUX/F1.2(Led on) Signal System PAL/NTSC Video Standard AHD and CVBS Standard Video Output 1CH AHD HD/CVBS Standard Singal Output(Switchable) Max Transmission Distance Common 75-5 cables can be up to 500m Lens 3.6MM Lens IR distance 20M(18 Pieces IR Leds) Shutter Speed 4/25s-1/45,000s Power supply DC 12V 1A BLC Off/Low/Medium/High/Highest White Balance Auto White Balance Operation temperature

-10°C~55°C




High Resolution 4MP Dome AHD Surveillance Camera Indoor 2.8-12mm Lens 30 Meters Night Vision Dome Vandalproof Infrared CCTV Cams USD 38.47-42.58/piece Mini 4CH 1080N AHD DVR Board AHD-N Hybrid 1080P NVR Digital Video Recorder Module For 720P 1080P AHD/TVI/CVI/Analog/IP Camera USD 24.04/piece 4MP 5 IN 1 AHD CCTV Camera DVR 4CH 8CH AHD H.264 Hybrid 4.0 Megapixel NVR Digital Video Recorder for 2MP 4MP AHD/TVI/CVI/IP Cams USD 60.44-76.12/piece 4Channel 8Channel 5MP AHD DVR Hybrid 5.0 Megapixel Digital Video Recorder NVR for 2MP/4MP/5MP AHD TVI CVI Analog IP Camera PTZ USD 85.03-141.37/piece Waterproof 1080P AHD Starlight Camera Outdoor 2.0 Megapixel Home Security Surveillance Analog Cameras 20 Meters Color Night USD 46.55-48.19/piece Full HD 2MP 4MP AHD Fisheye Surveillance Camera 360 Degree Wide Angle High Resolution Home Security Analog Camera with OSD Cable USD 30.85-37.04/piece Super High Definition 5MP AHD Security CCTV Camera Outdoor SONY 326 2.8-12mm Varifocal Analog Home Video Surveillance IR Camera USD 43.62-47.00/piece High Definition Dome AHD CCTV Camera Wide Angle 2MP 4MP 20M IR Night Vision 180 Degrees Video Surveillance Home Secuerity Camera USD 31.75-37.93/piece





Difference between 2MP and 4MP in resolution:



Easy Connection Diagram for AHD Camera













  Q: What is AHD ?   A:  Analog High Definition     Q: What is AHD's advantage ?   A: 1. High resolution: Advanced signal filtering, 3D noise reduction, higher image resolution, better image reproduction.      2. Long range transmission distance: max. 500 meters over traditional 75-3 coaxial cable.      3. No video latency: Uncompressed video, real time transmitting.      4. Better compatibility: Compatible with D1/960H products.      5. Low cost: Same price like traditional analog camera, but high definition image quality.      6. Open standard: AHD chip-set from third-party provider - Nextchip. Its standard is open for every security                           manufacturers.   Q: Can I use the normal DVR work with the AHD Camera?   A: No, The AHD Camera must work with the AHD DVR, other way will not work. Please leave message if you have any questions.     Q: Can I use the AHD Camera contact to my monitor?   A: No, The AHD Camera need connect AHD DVR first, then AHD DVR Connect Monitor.
