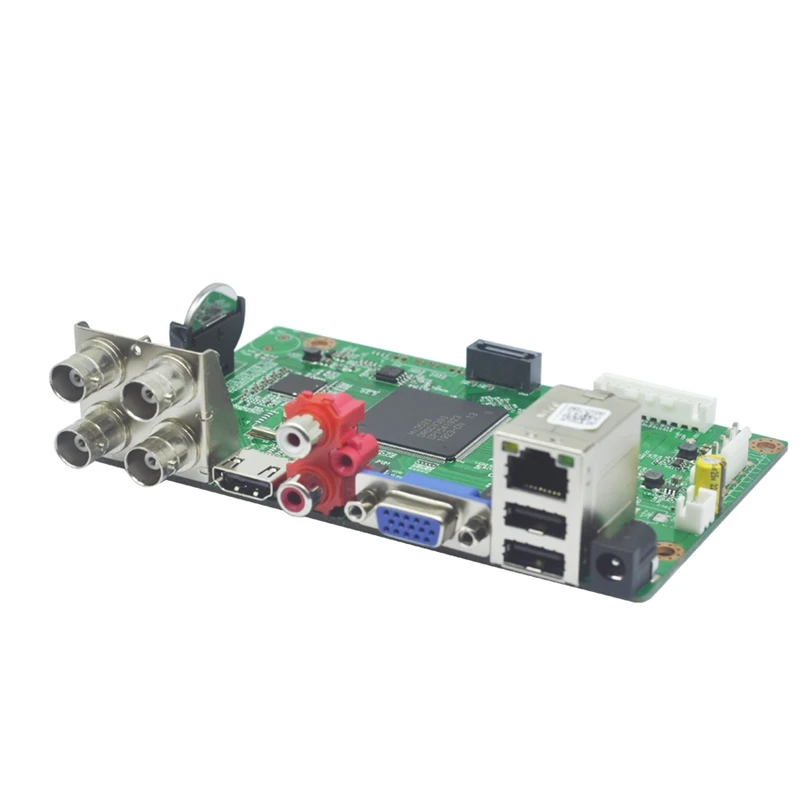

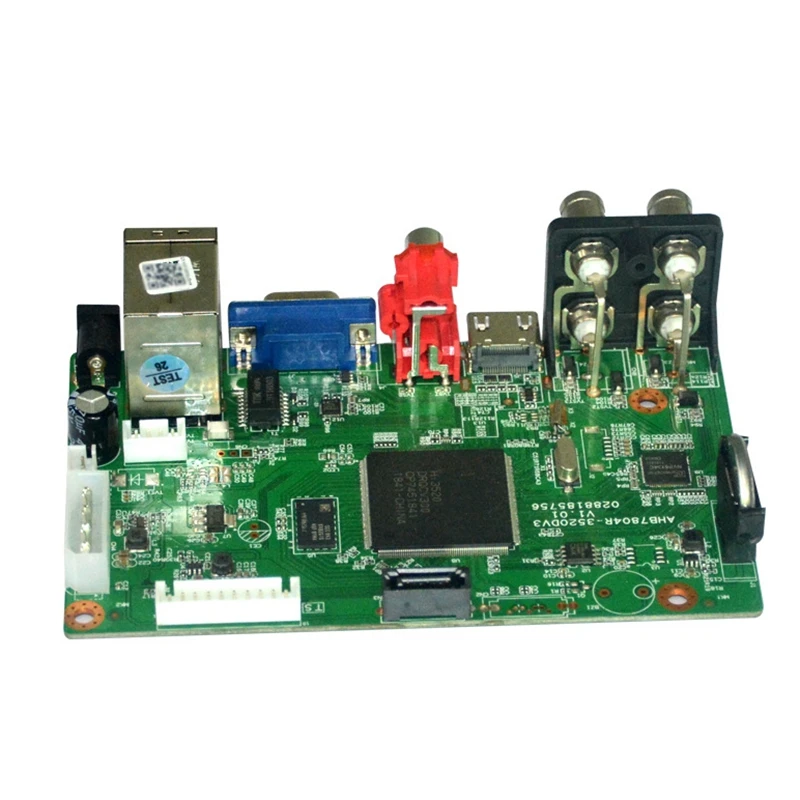

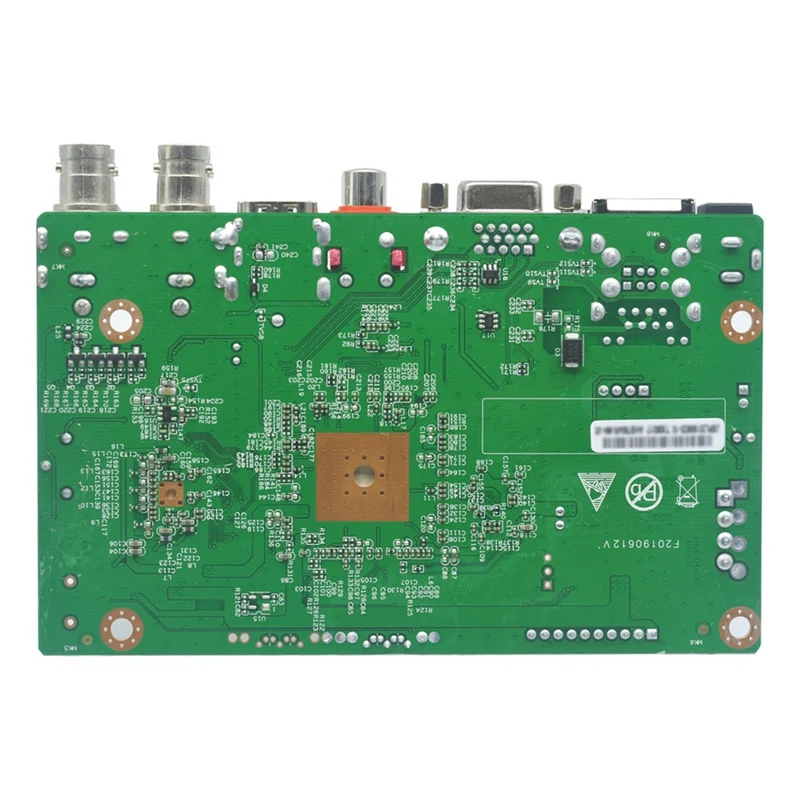

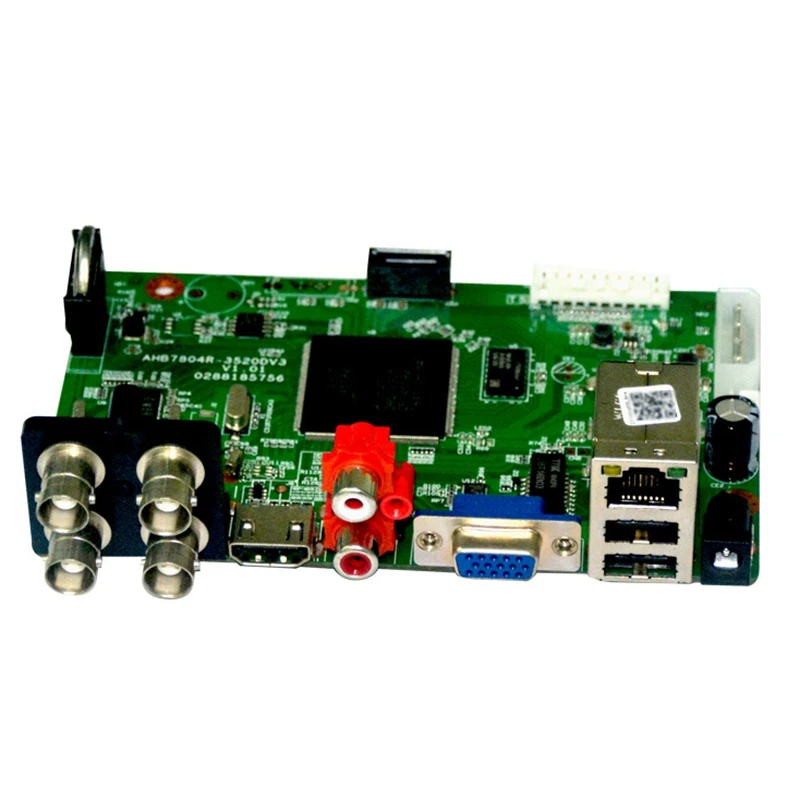

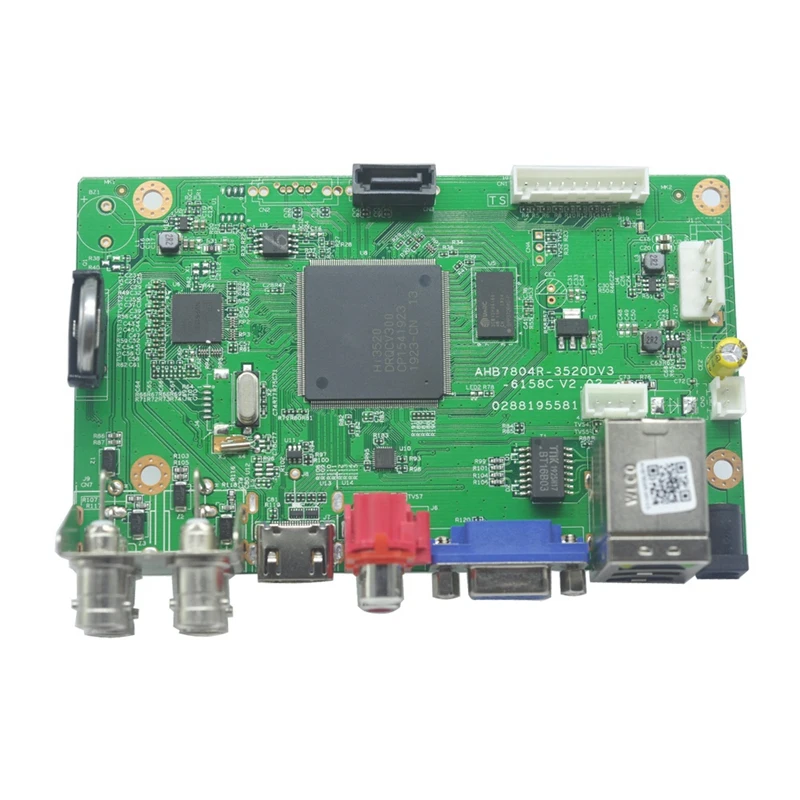

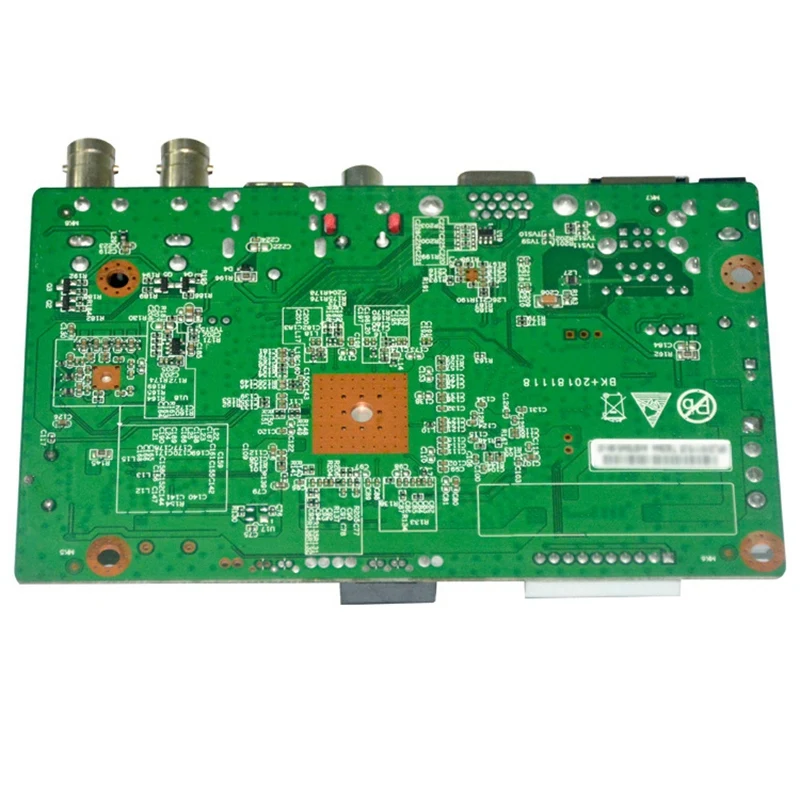

4 CH Hybrid DVR Board 5MP-N H.265 NVR Security CCTV Video Recorder Channel | Безопасность и защита

1. Support h. 265+ coding technology, ultra-low bit rate;Support VGA and HDMI hd output display; Support ONVIF protocol to connect third-party devices (network mode);
2. Support a variety of cloud technologies, achieve network penetration, front and rear terminal docking, alarm information push to the phone and other functions;Support remote monitoring of various mobile phones and pads (ios, android);
3. Standard coaxial control, easy to achieve the back-end control front end; Support XVI/AHD/TVI/CVI/CVBS/IP signal six-in-one access; Support XVI protocol, better ie effect;
4. Support ligent analysis:perimeter alert, item care, video diagnosis, ligent quick release, ligent search and other functions
Model Number:AHB 7804R-MS-V3
Technology:Analog
HDD Capacity:None
Compression Format:H.265
Video Input Interface:HDMI
o Input:1 RCA
o Compression Format:G711A
Video Resolution:1080N
Video Output:1CH HDMI 1920X1080 60Hz
o Output:1CH RCA
Hard drive Interface Type:SATA
Hard Drive Size:3.5 inch
Network Interface:RJ45 10/100M
Communication Interface:RS485
Network Protocol:TCP/IP
Wireless Security:WEP
IP Mode:Static IP address
Backup Type:USB Flash Divers
Monitor quality:VGA,HDMI ,HD
Record mode:manualGreater thanalarmGreater thanmotion detectionGreater thantiming
Local Playback:4ch(local input mode)
Video storage:HDD, network
Backup mode:Network, USB hard disk, USB burner, SATA burner
USB:2* USB 2.0 ports
HDD:1*SATA ports (Max 8TB/per)
Intercom:support
Search mode:Search by time, calendar, event, channel
Preview:1/4
colour:green
Material:ABS
Size:16.8*8.1cm
Package Contents:
1* Motherboard
2* Cable
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
